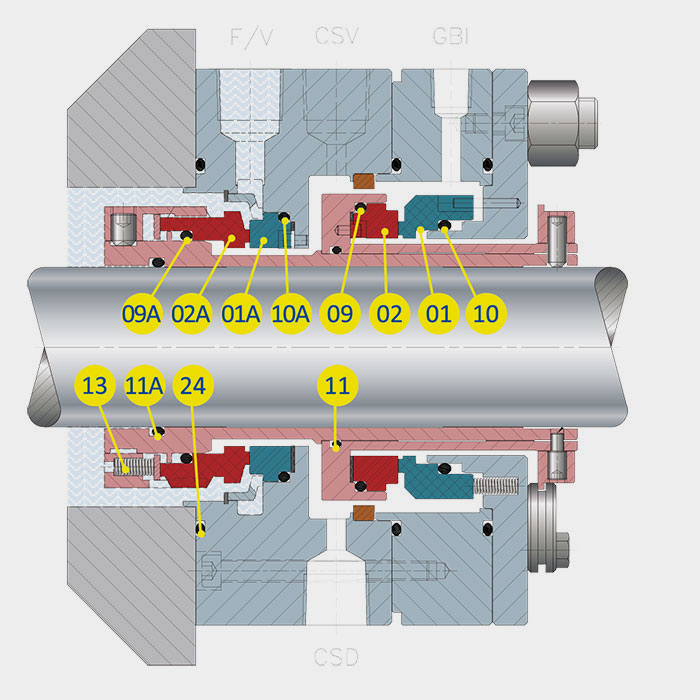

BM6L

Description

Seal developed for low-risk processes equipped with auxiliary dry mechanical seal for use at medium operating pressures.
The physiological losses of the product side seal are conveyed to the system drains or to collection tanks depending on the customer’s availability.
The secondary containment mechanical seal is stationary to reduce the load on the surfaces and minimize the heat generated thanks also to Fluiten’s particular Fluigrid technology.
The BM6L seal is the result of the standardization of a series of projects tested and created in accordance with the API 682 IV edition standard.

• Balanced single seal with secondary containment seal;

• Multiple springs for double direction of rotation;

• Monolithic sealing rings;

• Tested and unique rotating ring drive system, designed to maintain efficiency even in the event of vibrations, misalignments and wear of the sealing rings;

• Flushing, washing and/or draining connections

• Flange and shaft sleeve designed to customer specifications;

• Recommended solution for installations on existing machines.

(*) Inch dimensions are available upon request.
The maximum values are determined by the specific combination of operating conditions.
For further details, please contact us.
