CB8L

Description

The double seals with auxiliary dry seal guarantee appropriate service for polluting processes at medium concentrations.
The secondary containment mechanical seal is stationary to reduce the load on the surfaces and minimize the heat generated thanks also to Fluiten’s particular Fluigrid technology.
The solution is the result of a standardization process of engineered projects tested and created in accordance with the API 682 IV edition standard.

• Standard solution resulting from tested designs and made in compliance with standard API 682 4th edition

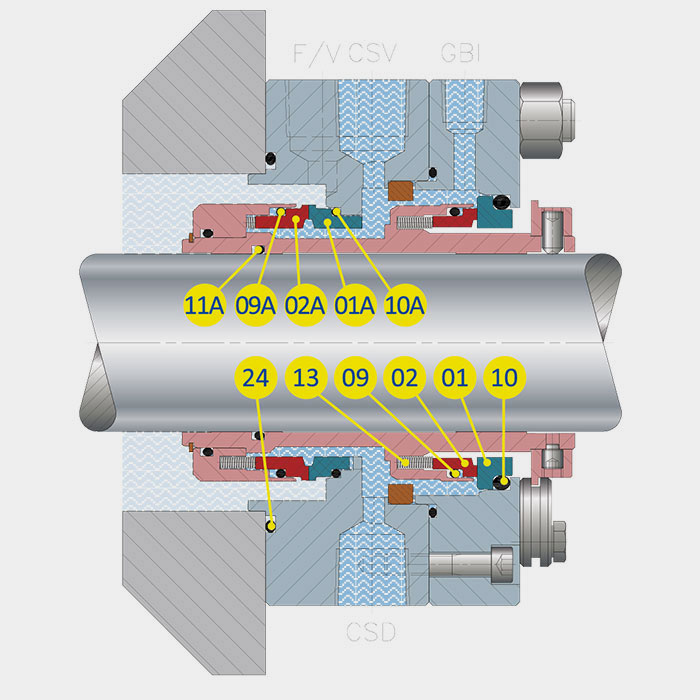

• Cartridge solution, single balanced contacting with process and secondary containment mechanical seal

• Containment mechanical seal is the stationary type to reduce the load on the surfaces and minimise the generated heat, also with the use of Fluigrid, a specialFluiten technology

• Dual direction of rotation

• Dual balance

• Springs outside the product of the pumped liquid

• Solid sealing rings

• Tested and unique driving system of the rotary ring, developed to be efficient in case of vibration, misalignment and wear of the sealing rings

• Connections for flushing or vent and control of physiological leakages of the seal on the process side

• Possibility of sizing the shaft flange and sleeve according to customer requirement

• Recommended for ANSI horizontal and vertical pumps

(*) Inch dimensions are available upon request.
The maximum values are determined by the specific combination of operating conditions.
For further details, please contact us.
