GT13459
Seal for side-entry storage tanks with shut-off device.

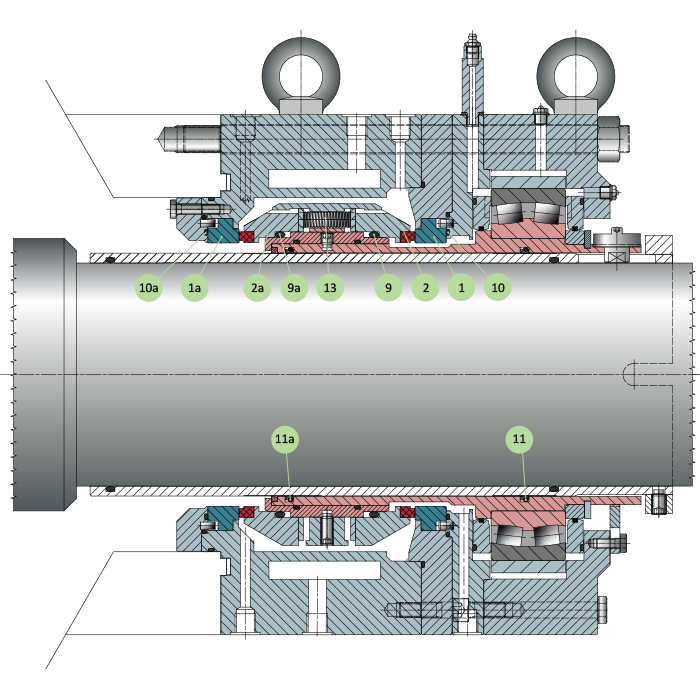

COMPONENT KEY
1. Solid stationary ring
1a. Solid stationary ring
2. Solid rotating ring
2a. Solid rotating ring
9. Rotating ring gasket
9a. Rotating ring gasket
10. Stationary ring gasket
10a. Stationary ring gasket
11a. Product side sleeve gasket
13. Springs
24. Flange gasket
- Description
- Features
- Operating limits
- Additional information
Description
Engineered double cartridge seal designed for horizontal dryers with medium to large diameter shafts. Developed in collaboration with leading OEMs, this design is engineered to withstand the mechanical stresses typical of these machines, resulting from high operating temperatures and the pressures required by chemical and active pharmaceutical ingredient (API) processes. The dimensions of all components have been verified through Finite Element Analysis (FEA) to ensure maximum operational reliability.
- Double mechanical seal equipped with connections suitable for pressurized liquid flushing, according to API Plan 53B and Plan 54.
- Cartridge locking and drive device designed and tested to accommodate significant axial shaft displacement.
- Integrated cartridge bearing, sized according to specific shaft loads and stresses.
- Wetted parts available in Stainless Steel 316, Duplex, Super Duplex, and high-performance Alloys (e.g., Hastelloy).
- Heavy-duty drive lugs on rotating components, engineered to tolerate shaft run-out and angular misalignment.
| DIAMETER | SPEED | PRESSURE | TEMPERATURE |
|---|---|---|---|
| 60-250 (mm)* | 0-4 (m/sec) | Vacuum ÷ 50 (bar g) | -15 ÷ 300 (°C) |
(*) Inch dimensions are available upon request.
The maximum values are determined by the specific combination of operating conditions.
For further details, please contact us.
Additional information
| Category | GT-Type Double Seals, Mixer Mechanical Seals |
|---|---|
| Market | Chemistry, Petrochemical, Pharmaceutical & Food, Water treatment |
| Application | |
| Certification | 3.1, ATEX, CE1935-2004, F.D.A. |
