GT1923A

Description

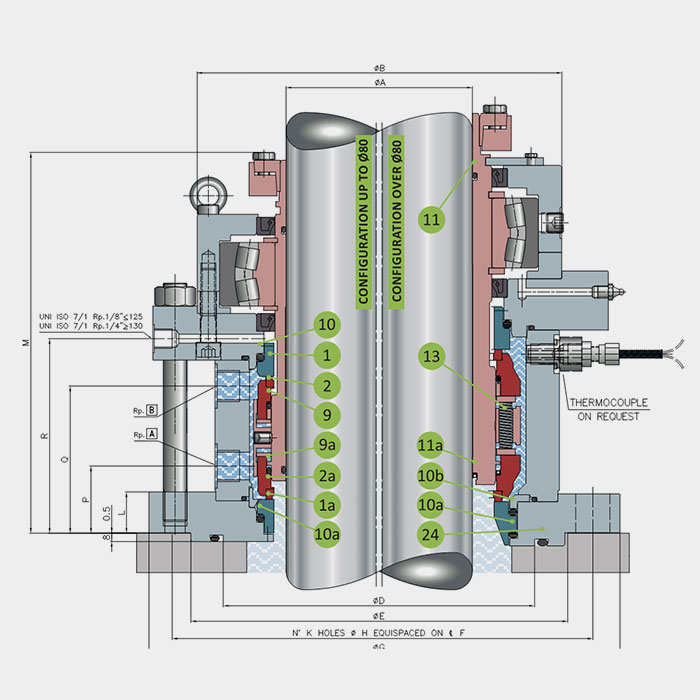

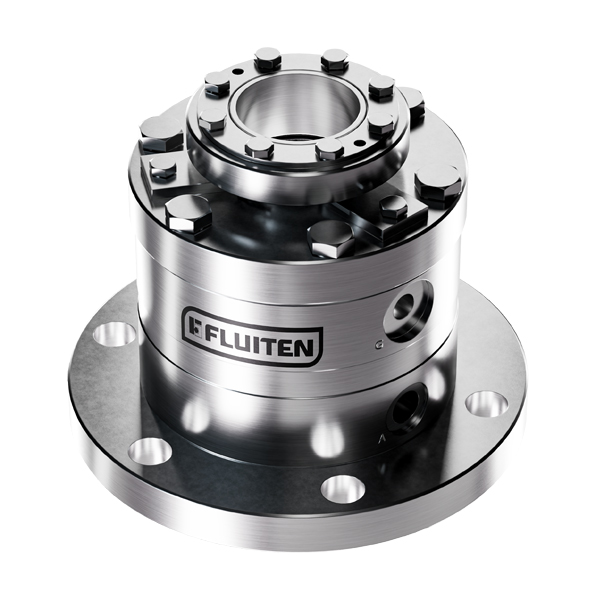

A preassembled, back-to-back double cartridge seal with an integrated, seal aligning roller bearing. Suitable for operation with a pressurised fluid. A double reverse pressure if there is a loss of barrier fluid pressure. Designed using API 682 construction guidelines.

• Double balanced design able to tolerate unexpected reverse pressure.

• High performance solid seal rings developed with FEA analysis to avoid deformation.

• Optional: sanitary gland to avoid product contamination and cooling jacket for high temperature applications.

• Retained stationary ring to prevent blow out during reverse pressure.

• Robust drive lugs that can tolerate run-out and vibration.

• Optional thermocouple for ATEX applications.

• Bearing protection ring to contain lubrication.

• Positioning device for easy, precise installation.

• Shrink disk drive to guarantee and maintain correct seal axial position under high process pressure conditions.

• Self aligning roller bearing to ensure minimum seal run-out.

• Atmosphere leakage monitoring connection.

• Flushing connections designed to ensure air is always vented.


(*) Inch dimensions are available upon request.
The maximum values are determined by the specific combination of operating conditions.
For further details, please contact us.
