TZKA
The TZKA seal is a heavy-duty seal medium and high pressures.

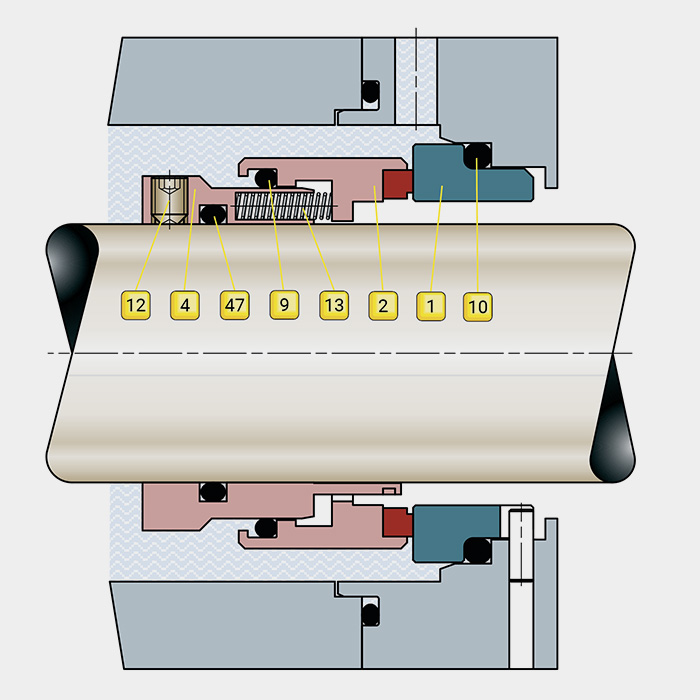

ELEMENTS
1. Stationary ring
2. Rotary face
4. Seal body
9. Rotary fase o-ring
10. Stationary ring
12. Setscrew
13. Spring
47. Seal body gasket
- Description
- Features
- Operating limits
- Additional information
Description
The TZKA seal is a heavy-duty seal medium and high pressures.
The TZKA is a single component seal, with a type A pinned stationary seat, pressure balanced, with an integral shaft, it can be fitted on sleeves without step and it allows rotation in two directions.
It is fitted with multiple springs located outside of the product, which makes it suitable for use in particularly dirty of viscous liquids.
Three substational, internal, drive lugs ensure high performance even in the case of misalignment, vibration and cavitation.
- Single seal
- Bi-directional
- Balanced
- Non wetted spring
- Dirty and viscous liquids
- Resistant to mechanical stress
- Endure run-out up to 3mm
- Can be fitted on straight shaft
| DIAMETER | SPEED | PRESSURE | TEMPERATURE |
|---|---|---|---|
| 35-200 (mm)* | 0-30 (m/sec) | Vacuum ÷ 100 (bar g) | -100 ÷ 250 (°C) |
(*) Inch dimensions are available upon request.
The maximum values are determined by the specific combination of operating conditions.
For further details, please contact us.
Additional information
| Category | Component Seals, TBH |
|---|---|
| Market | Chemistry, Energy, Petrochemical, Pharmaceutical & Food, Water treatment |
| Application | |
| Certification | 2.1, 3.1, ATEX, CE1935-2004, F.D.A. |
